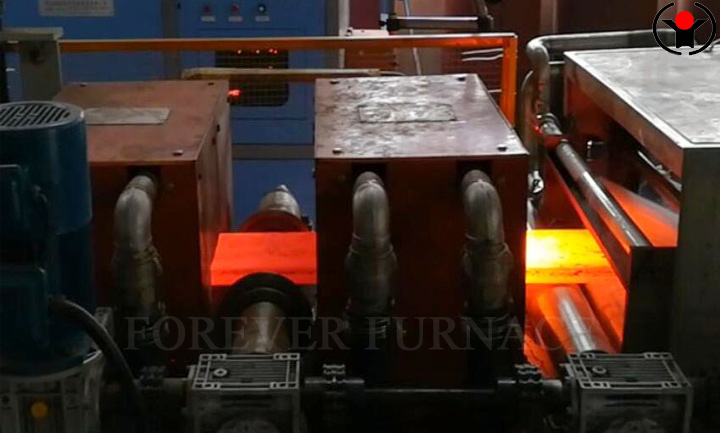

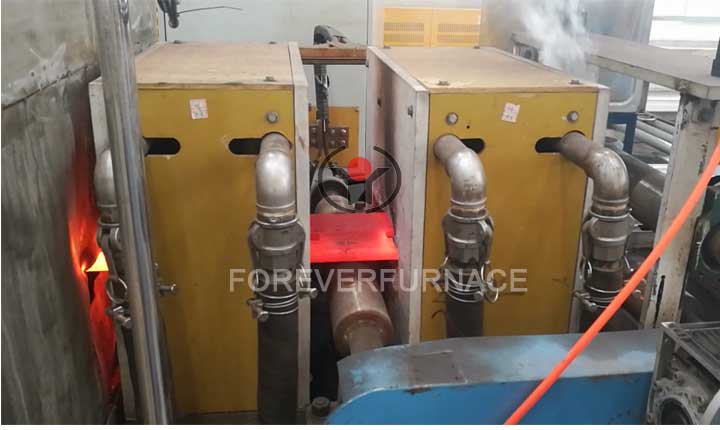

The steel plate induction hardening and tempering furnace is designed specifically for steel plates with a thickness of 20-60mm and a width of 80-500mm.
Advantages of specialized equipment for steel plate quenching and tempering:
1. Using induction heating technology and IGBT power supply system, with a power range of 200-800 kilowatts and a frequency of 4-15 kilohertz, processing 0.6-2.5 tons of sheet metal per hour,
2. This set of Steel plate heat treatment furnace is designed with a feeding system that combines roller conveyors and power double pinch rollers,
3. Driven by an independent motor reducer, the segmented speed can be adjusted to meet different process requirements,
4. The roller electrical isolation system prevents high-frequency equipment from igniting, ensuring safety and durability,
5. The temperature control system of steel plate induction heat treatment line achieves closed-loop control through infrared thermometers and industrial computer systems,
6. Intelligent formula management automatically calls process parameters and supports fully automated operations.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
Post time: 02-19-2025
