Components of the steel bar quenching and tempering production line -China manufacturer

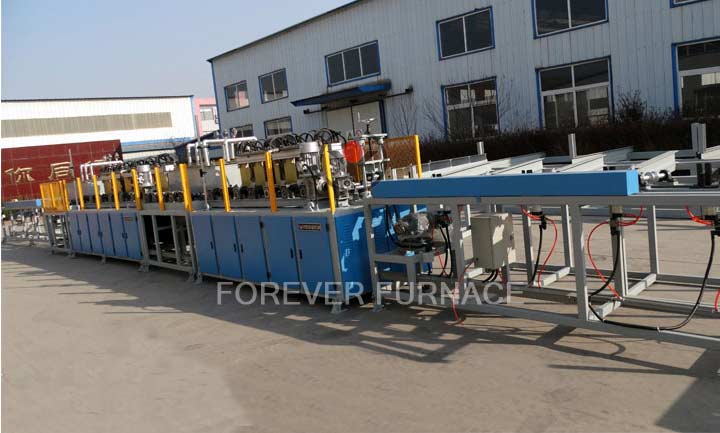

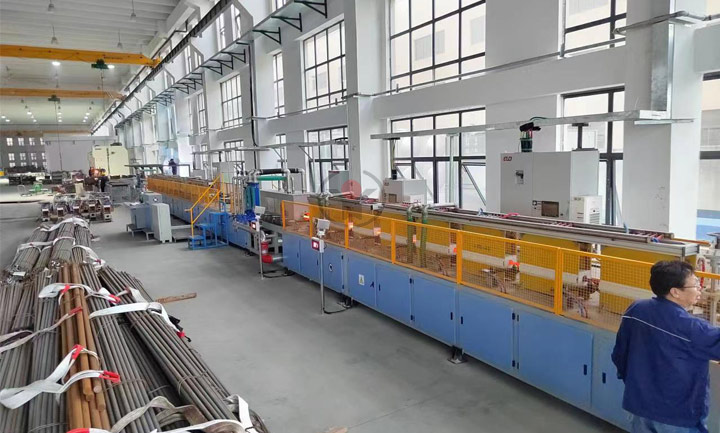

The steel bar induction hardening and tempering furnace is an industrial equipment specifically used for heat treatment of steel bars, mainly including quenching and tempering processes to improve the mechanical properties of steel bars, such as hardness, toughness, and strength. This type of production line usually integrates multiple processes, such as feeding, conveying, heating, quenching, cooling, and tempering, which can achieve automated production, improve efficiency, and stabilize product quality.

Key components and technical characteristics

The key components of the Steel bar quenching tempering equipment include:

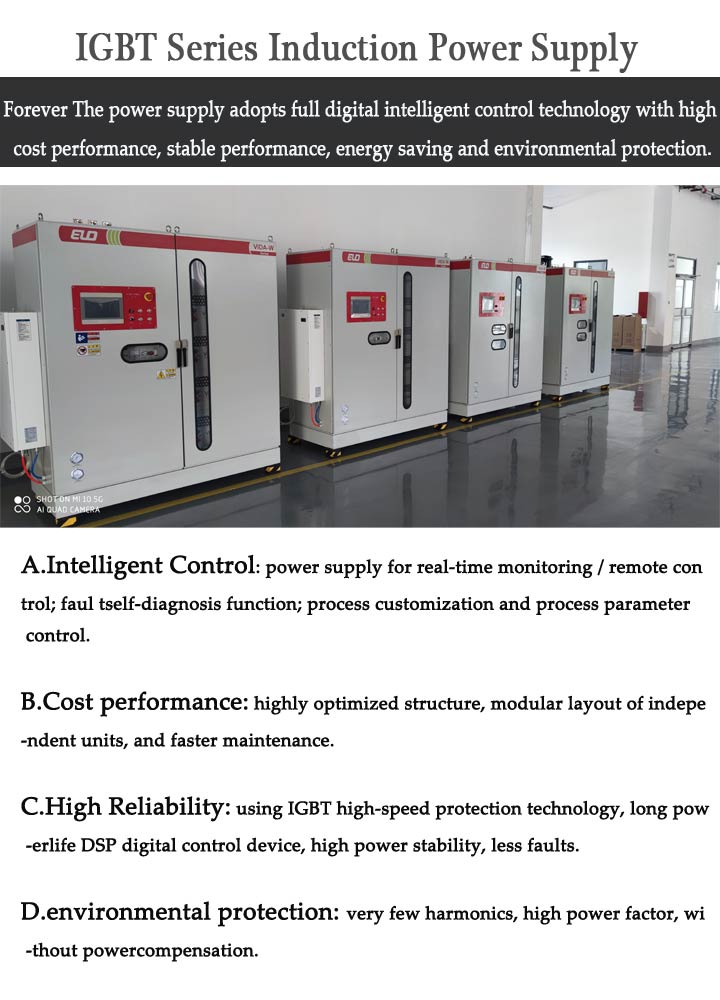

Medium frequency heating power supply: As the core of the production line, it uses intermediate frequency electromagnetic fields to generate eddy currents for heating metal workpieces.

Mechanical conveying device: automatically, continuously, and uniformly conveying the metal workpieces to be processed into the heating zone.

Infrared temperature measurement device: Infrared temperature measurement is performed on metal workpieces at the heating outlet to control the heating temperature.

Quenching device: By rapid cooling treatment, the steel rod obtains the required quenched and tempered structure and hardness.

Central console: As the control center of the entire production line, it can monitor and control the operation of the production line.

In terms of technical characteristics, modern steel bar induction heat treatment machine tend to be intelligent and energy-saving, adopting advanced induction heating technology, temperature closed-loop control systems, industrial computer systems, etc. to ensure the accuracy of heating temperature and the stability of the production process.
