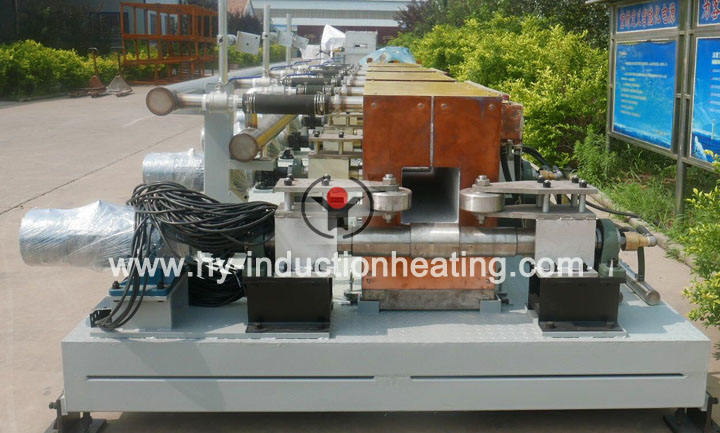

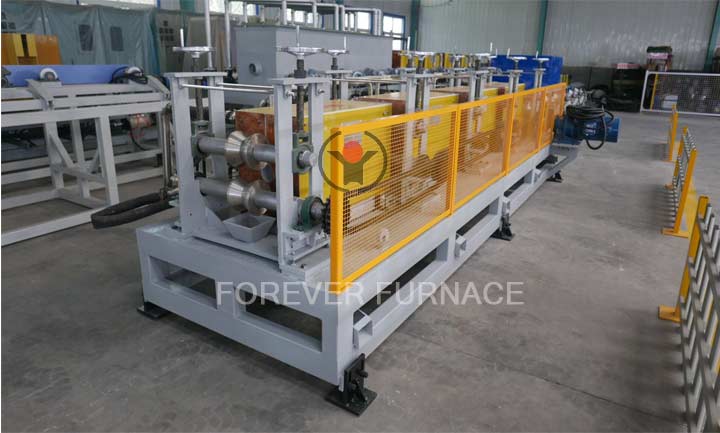

Continuous casting billet induction heating furnace -China manufacturer

Forever specializes in manufacturing fully automatic and intelligent continuous casting billet heating furnace , controlled by PLC and monitored by computers throughout the entire process of the furnace. Efficient and energy-saving, the company has a team of experienced experts in the induction heating industry, specializing in the design of continuous casting billet reheating induction heating furnaces, tailor-made for you. Fully automated feeding, heating, and unmanned operation throughout the entire process, with a comprehensive power control model to ensure the temperature control accuracy of the continuous casting billet reheating induction heating furnace.

Characteristics of Continuous casting billet induction heating furnace :

1. The speed adjustment range is 9-15mm/min.

2. The internal temperature of the continuous casting billet section belongs to the high temperature zone, with a temperature of 1100 ℃; The external area is a low-temperature zone with a temperature of 800 ℃, which is the part that needs to be raised by 300 ℃.

3. The temperature at the head of the continuous casting billet is about 50 ℃ lower than that at the tail.

4. Material: Low carbon steel

5. Install specialized transformers on the equipment to reduce the impact of harmonics on the power grid.

6. The entire heating process of the Continuous casting billet heating equipment is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner.

7. Dual power transformer, 12 pulse rectifier power supply

8. Each axis is driven by an independent motor reducer, equipped with multiple axis drives and controlled by a single frequency converter to synchronize the operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation.

9. All cabinets are sandblasted, sprayed with plastic, and baked with paint, and all waterways are made of thick walled stainless steel. The equipment is corrosion-resistant and has a long service life. The equipment is equipped with a large LCD temperature display screen.

10. The steel billet induction heating furnace adopts the American Leitai temperature measuring device, which ensures uniform temperature heating and no deformation or cracking of the billet.
