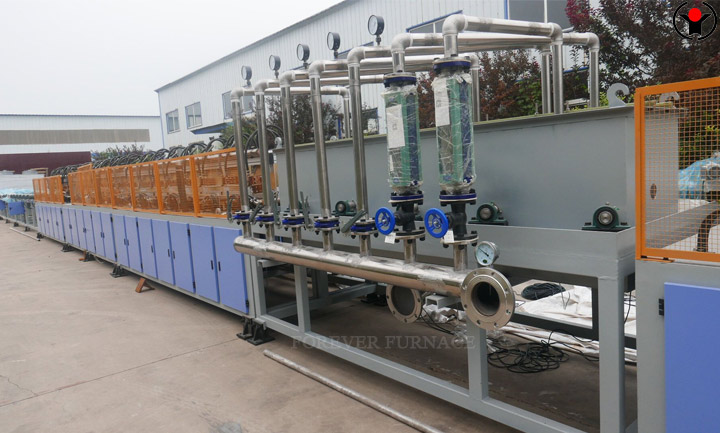

The Forever long bar induction hardening and tempering furnace is a device used for continuous heating of round steel, steel bars, aluminum bars, copper bars, and stainless steel bars with a length greater than 1 meter. It is widely used in industrial production processes such as tempering, rolling, and perforation. This device utilizes the principle of medium frequency electromagnetic induction heating, generating heat through the rod material itself, and has advantages such as fast heating speed, less oxidation, high efficiency and energy saving, high degree of automation, and good repeatability.

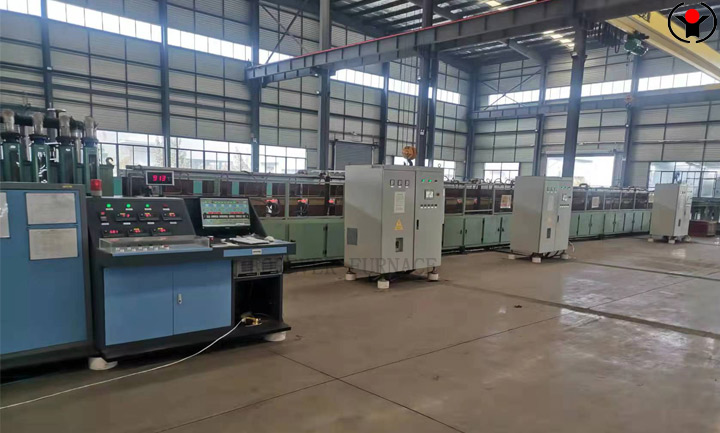

Equipment composition
Medium frequency power supply: Adopting a split structure design, the power cabinet is a GGD standard cabinet, and the power supply power can be adjusted according to production needs.
Capacitor cabinet: Compact in structure with sensors, reducing the exposure time of rod materials to air and minimizing energy loss.
Sensor: The core component responsible for electromagnetic heating of the bar material.

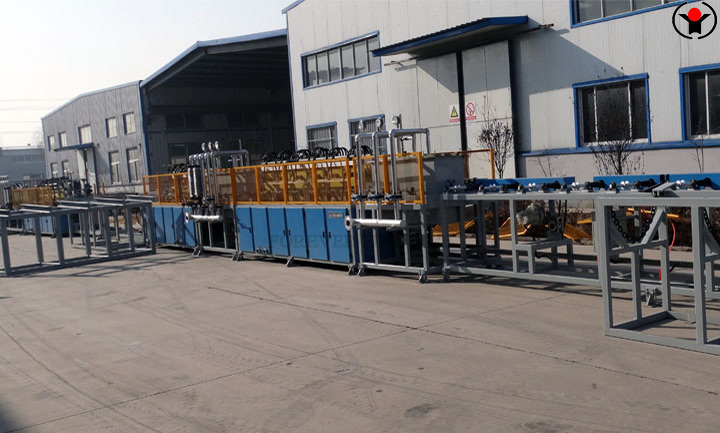

Feeding rack: welded with 6 # and 8 # standard channel steel, with a sturdy support structure, equipped with pneumatic components and transmission mechanisms.
Control cabinet: can be customized as relay control or PLC control, supporting functions such as automatic flipping, variable frequency speed regulation feeding, and temperature detection.
steel bar induction heat treatment machine Equipment features
Compact structure: The device design is compact, with low circuit losses, saving space and reducing energy consumption.
Highly automated: supports fully automated operations, reduces labor intensity, and improves production efficiency.
Wide adaptability: The equipment can heat bar materials of different specifications without the need for significant adjustments to the transmission mechanism.
Easy to operate: The operation and maintenance are simple, and after basic training, it can be operated independently.
Long bar induction heat treatment machine application area
This device is widely used in various processes of industrial production, including hot cutting and forging of bearing steel bars, quenching and tempering treatment of long bar materials, etc.
Technical advantages
Efficient heating: Using induction heating technology, the bar material can be heated to the desired temperature in a short period of time, improving production efficiency.
Precise temperature control: The equipment is equipped with a precise temperature control system, which can achieve precise control of the heating temperature, ensuring the consistency and stability of product quality.
Energy saving and consumption reduction: Due to the high thermal efficiency and low energy loss of induction heating, the overall energy consumption is low, which helps enterprises save energy expenses.
summary
The Forever long rod induction tempering furnace plays an important role in modern industrial production due to its high efficiency, energy saving, and high degree of automation, and is an ideal choice for metal heating processing.
