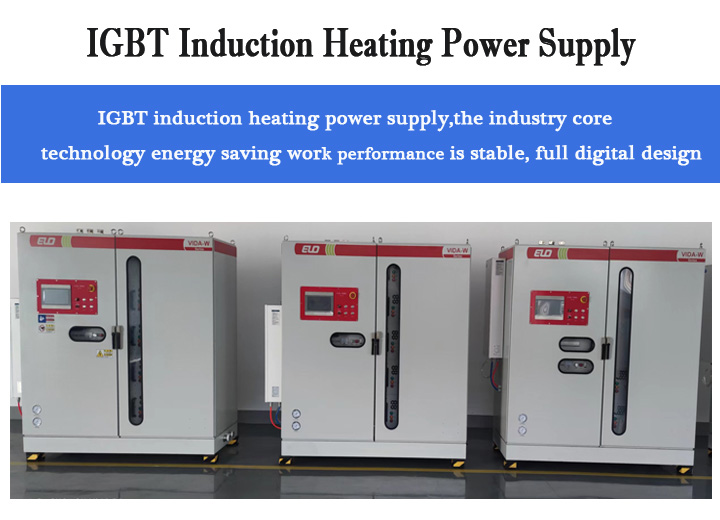

IGBT Induction heating power supply

IGBT induction heating power supply, power factor always ≥ 0.96, no high-order harmonics, low power consumption, stable quality and superior performance of intermediate frequency heating power supply. We provide users with excellent  Medium frequency heating power supply solutions and quotations for free

Intelligent control: The power supply can monitor and remotely control the operating status in real-time; Fault self diagnosis function; Process customization and process parameter control, etc.

● High cost-effectiveness: The structure is highly optimized, and the modular layout of independent units makes maintenance faster. It can also easily expand power supply with development.
● High reliability: Adopting IGBT high-speed protection technology, the power supply has a long lifespan and DSP digital control devices, with high power stability and few faults.
Energy saving and environmental protection: minimal harmonics, high power factor, no need for power compensation.

 IGBT medium frequency power supply  design, chopper power regulation. It combines high stability and adaptability of parallel resonance with high power factor and energy-saving advantages of series resonance

Point.
Based on IGBT fully controlled device design, it has comprehensive protection functions and intelligent maintenance free capabilities over a large range. A single power supply covers all areas of induction heating, meeting your diverse needs.
Variable frequency load adaptive, frequency adaptation range of 200-300KHz, automatic matching for induction furnace replacement, no need for manual adjustment. T2 copper bars are used in the intermediate frequency heating power cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses. Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored with one click to factory settings. Shenyuan single machine power is 50-6000KW, frequency is 200-300KHz.
