The Forever steel ball hot rolling production line is one of the main products of Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd.

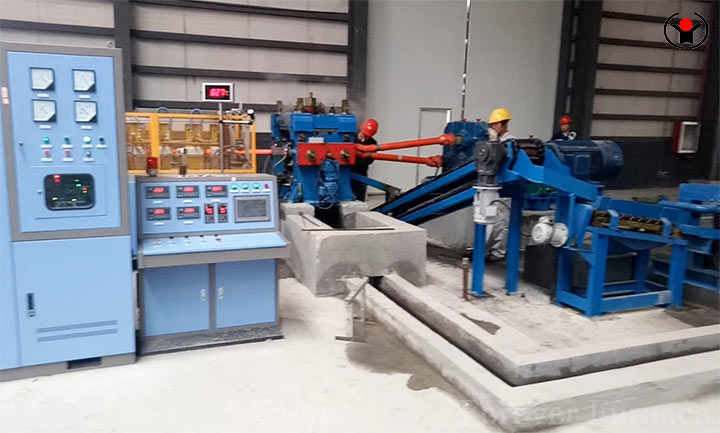

Steel ball hot rolling production line
Process flow: The bundled round steel bars are lifted onto the “storage rack”, and the automatic feeder automatically feeds the round steel onto the conveyor track of the “medium frequency heating furnace”. The round steel enters the “electric furnace” on the conveyor track by relying on the automatic feeding mechanism. The heated round steel bars enter the “steel ball rolling mill” mold through the “feeding guide sleeve” and are continuously rolled into steel balls. They enter the “conveyor system” through the “slide” and undergo conveying and cooling treatment to make the temperature of the steel balls uniform inside and outside. At the same time, the temperature of the steel balls is lowered to the quenching temperature, and then enter the “quenching machine” for continuous quenching. After quenching, they enter the “material basket” through the “slide”. Use a tempering furnace to temper steel balls.
Equipment composition: mainly composed of induction heating power supply, furnace cabinet, capacitor group, heat transfer furnace body, clamping roller, power furnace body connection line, operation console, PLC control system, etc.
Features: Using electromagnetic induction principle for heating, compared with traditional heating equipment such as gas furnaces and coal-fired furnaces, the heating is more uniform, and there is no oxidation scale or burning phenomenon on the surface of the billet, with high automation production capacity.
steel ball forging production line
Process flow: Using alloy round steel produced by steel mills as raw materials, the round steel is heated and forged, and then subjected to heat treatment processes such as quenching and tempering.
Equipment composition: including medium frequency induction heating furnace, forging equipment, quenching equipment, tempering equipment, etc.
Features: The internal metallographic structure of forged steel balls is more compact, with high impact toughness. Even when used in larger semi autogenous mills, they will not break, with a breakage rate of ≤ 1%. Through mature heat treatment processes, the hardness of the core and surface is almost the same, and the hardness is uniform with no significant difference in hardness. The roundness loss rate during use is extremely low.
The steel balls produced by the Forever steel ball induction heating production line are widely used in ball mills in industries such as mining, cement, and electricity, for grinding various minerals, cement clinker, coal, and other materials.
Overseas manager: Tom Wang
Email:tom@foreverfurnace.com
Phone: 0086-13303078975(whatsapp, wechat,line)
Specialist of bar heat treatment furnace in China; Glad to be your business partner in induction heating field.
Post time: 03-04-2025
