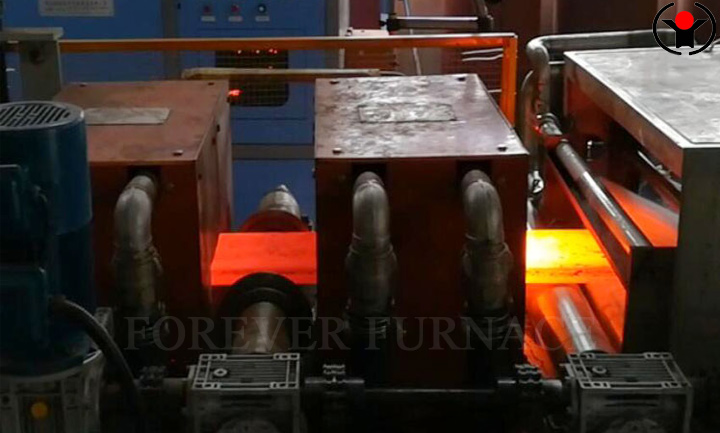

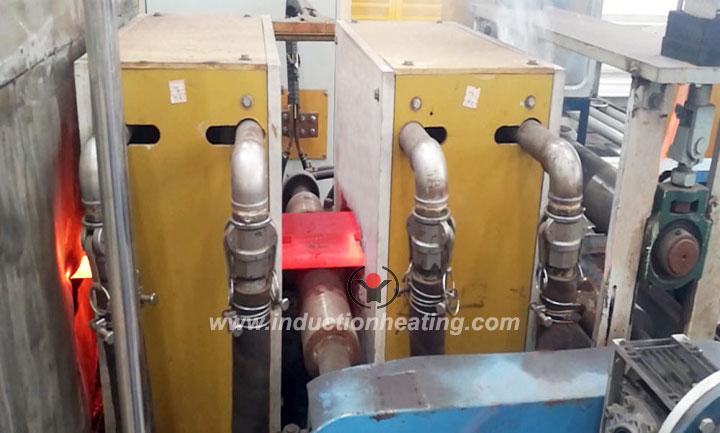

Main technical parameters of steel plate induction heat treatment line :
●Applicable workpieces: Suitable for medium frequency heat treatment of steel plates, slabs, blade angle plates, engineering blade plates, etc.
●Power supply system: quenching 200-800KW/2.5-4.0KHZ, tempering 160-500KW/1.0-2.5KHZ, hourly output 0.6-2.5 tons.
●Applicable range: thickness 20mm-60mm, width 80mm-500mm.

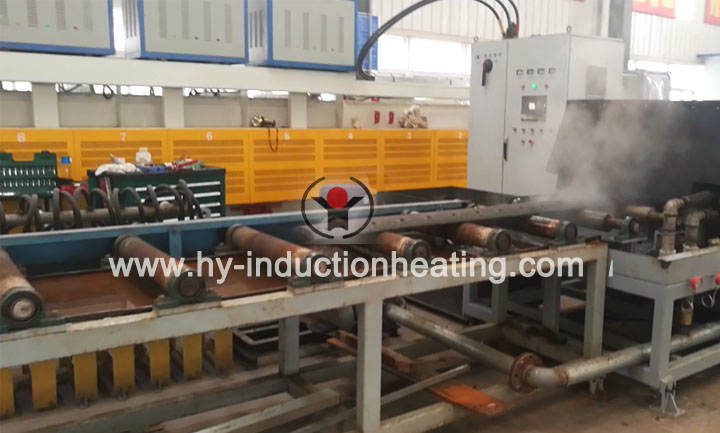

● Feeding system: roller conveyor+power double pinch roller, each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.
●Roller electrical isolation: In response to the problem of workpiece and roller ignition, we have designed a sturdy and durable roller electrical isolation system to solve the problem of workpiece ignition damage.
● Recipe management function: A powerful recipe management system that automatically calls relevant parameters after selecting the steel grade and plate type parameters to be produced, without the need to manually record, view, or input the required parameter values for various workpieces.
● Energy conversion: using quenching+tempering method, with a power consumption of 380-400 kWh per ton.
Advantages and characteristics of steel plate heat treatment production line:
The use of steel plate heat treatment equipment can achieve rapid heating and achieve the effect of heat transfer heating, with uniform heating of the plate;
Efficient and energy-saving, with high power factor and power efficiency across the full power range;
The steel plate heat treatment production line does not need to heat up in advance before production, which saves energy and is conducive to organizing production;
During the heating process of the steel plate induction hardening production line , less oxide scale is generated on the steel plate, resulting in high heating quality. Compared with other heating methods, it effectively reduces energy consumption and has high labor productivity;
The control circuit of the Steel plate heat treatment furnace adopts an intelligent control board (single board) specially developed by Yuantuo, and the main core components are imported integrated circuits. The fully digital and relay free control circuit ensures the stable and reliable operation of the entire system.
