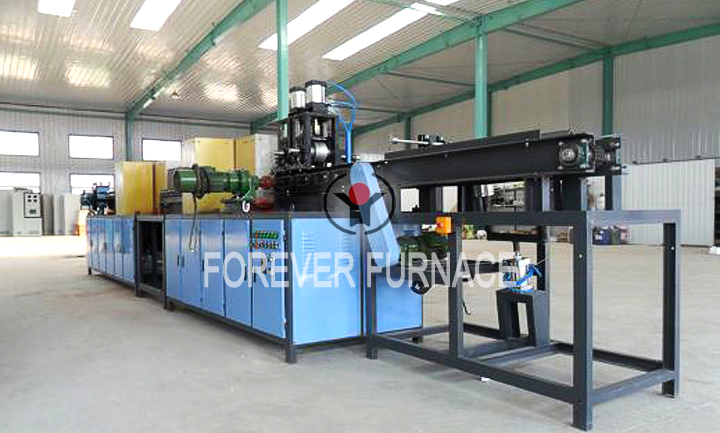

Sucker rod induction hardening tempering furnace is a complete set of equipment used for surface heat treatment processing of sucker rods, covering five main processes: feeding, heating, quenching, cooling, and receiving. Hebei Forever Electromechanical will combine modular design of equipment and provide a detailed introduction to its technical characteristics.
1、 Feeding system
The task of the feeding system is to transport the sucker rods one by one, at a constant speed, and stably to the induction heating station, laying the foundation for subsequent processing.
2、 Induction heating system
The induction heating system generates an alternating magnetic field through an induction coil to quickly and uniformly heat the surface of the sucker rod. Heating equipment selects induction power sources with different powers and frequencies according to the processing requirements of the sucker rod.
3、 Quenching system
The main task of the quenching system is to rapidly cool the surface of the heated sucker rod and form a hardened layer. Spray quenching is commonly used as a cooling method.
4、 Cooling system
The cooling system is used for temperature control of the Sucker rod induction quenching tempering furnace body, especially for the induction coil and power supply parts. Common cooling solutions include:
a. Closed loop cooling system: efficient and energy-saving, extending equipment life.
b. Open cooling system: suitable for occasions with low water quality requirements.
c. Oil cooling device: used for temperature control requirements of equipment in special environments.

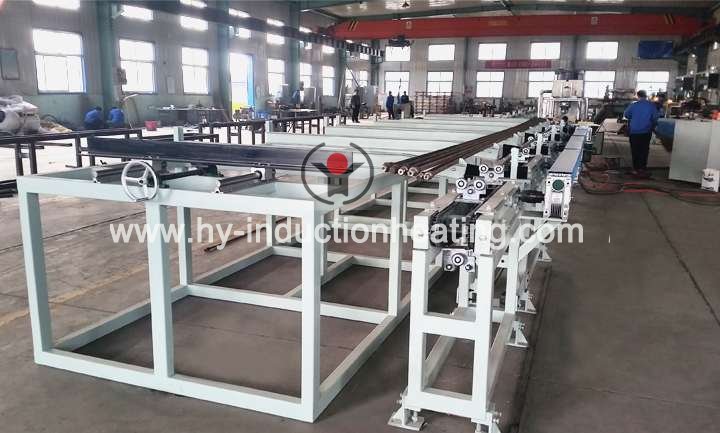

5、 Material receiving system
The receiving system is responsible for neatly collecting the processed sucker rods for subsequent operations. According to the characteristics of the production line, you can choose:
a. Material rack receiving: suitable for single rod-shaped workpieces.
b. Roller conveyor type material collection: convenient for continuous operation.
c. Automatic sorting device: supports automation requirements for mass production.

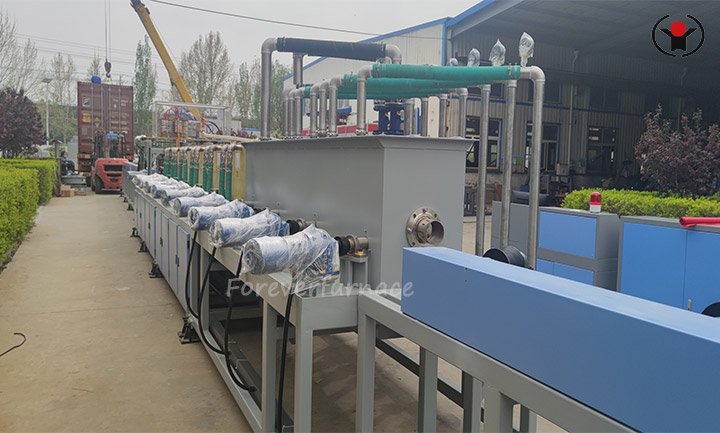

The sucker rod induction heat treatment production line combines feeding, heating, quenching, cooling, and receiving to achieve automation and high-quality output in sucker rod processing. It is the main equipment in sucker rod processing production lines.
