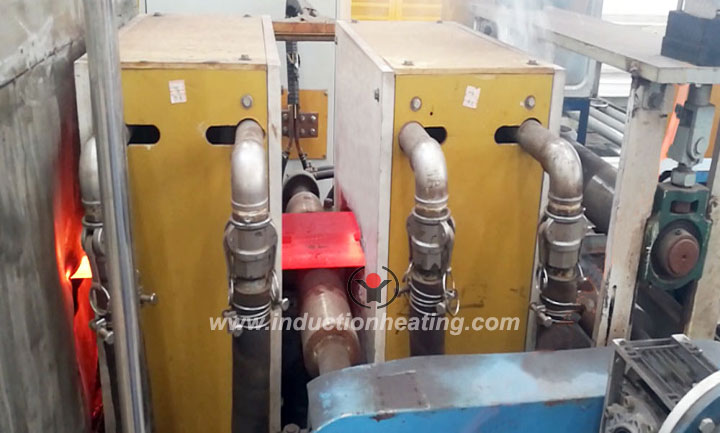

This 300 kW induction heating hardening equipment is specially designed by Forever Company for processing steel plates with sizes ranging from 25mmx200mmx2500mm to 40mmx400mmx3000mm. The
Plate surface hardening furnace adopts through heat hardening technology, and the quenching temperature can be adjusted to around 860 ° C to meet different material and heat treatment requirements. The equipment output can reach 800 kilograms per hour.
The composition of a complete set of induction heating and heat treatment equipment includes:
Intermediate frequency power cabinet, modular induction heating furnace body, PLC control system, 304 stainless steel spray quenching system, conveying system, etc.
The main advantages of this Plate induction hardening line are:
1. Highly automated and easy to operate, achieving fully digital management through touch screen control
2. Stable equipment operation, reducing human operation errors, and improving production efficiency
3. Multi level safety protection measures, including water pressure, voltage, and overcurrent protection, ensure the safety of equipment and operators.
4. Automated current tracking and dual loop, PI regulator ensures stable current output, maximizing energy efficiency and production efficiency.
Post time: 10-24-2024
